This is a once high-end flagship router. Although it has been released for two years, it is not at all a time. It has been continuously followed a year ago. The price is stable at RMB 1999 for a long period of time. However, Aunt Zhang found a huge activity (Jingdong mobile phone end 1399 yuan, superimposed 999-400 coupons). It just needs a high-performance router (more on that later). Voucher, and then only with the 999 yuan "browsing" took her back home ~. After all, the 2K machine lowered its price to thousands of machines, well, I am indeed a price sensitive user.
The R8000 supper owl X6 is a three-band wireless router with 2.4G and two 5G frequency bands. The bandwidths are 600, 1300, and 1300 Mbps, respectively, and the sum is 3200 Mbps. The model AC3200M is also the result. X6 uses Broadcom BCM4709 dual-core 1GHz main processor, in addition there are three BCM4360 co-processing separately handle wired network, WIFI, USB storage, add up to a total of 5 cores, "five nuclear artifacts" is also the resulting (if run a chapter how?). More super configuration information please see the figure below:

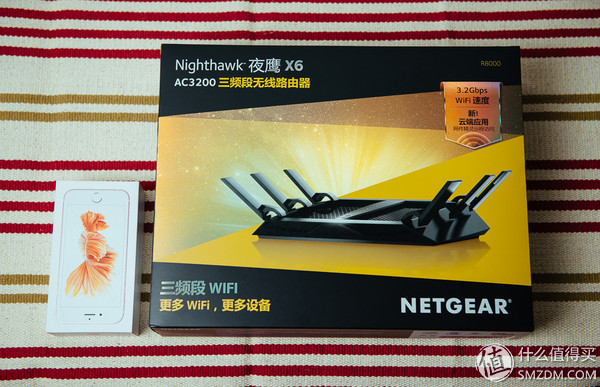

With an East Express plastic bag, it is possible to see its huge packaging, which is difficult to associate with a router. The 360 ​​routers in use at home, as well as the D-Link products that have been retired, are just a matter of time. Obviously, there is big content in the bulk package. The following figure is compared with the 6S package (front and back):
Unpack the two layers to create a family portrait. They are: router host, power line and power driver, network cable, manual warranty book.
The host shows that the six are not the abdominal muscles. They are claws. Let me sigh once more: The body is big!
Six crab claws (antennas) were unfolded and there were two gears. The sense of stall and damping was very good.
Turn it over, the mighty crabs come! Love this picture too! ! ! (Original hairy crabs come this way~)
Bottom display (sn code and mac address should not be seen, it also saves ~):
The socket display, from right to left are: USB2.0, Led display switch, four LAN port, external network port, USB3.0, reset hole, power jack, switch.
The power adapter shows, really big, the size of the laptop adapter. Indeed, people's output is 12V 5A, 60W output power is indeed the notebook adapter standard. This large power is enough to drive such high power Wifi and USB storage. When the power is normal, the power is about 12 watts. Compared to the home 360P1, the power is really not small, but compared with the maximum power that the power adapter can accommodate, the space is still big!
Network cable, network cable with a metal shield (note the metal sequins on the interface).
The frontal "honeycomb" is actually a hollow heat sink, and you can see the circuit board inside (there are wood?). The positive cover is a mesh, the advantage is indeed wearing gold and jade clothes, the disadvantage is too easy to get dust off, right?
The overall machine is wedge-shaped and has a thicker edge.
Originally wanted to open the back cover to look inside the circuit structure, and later found a screw under the nameplate sticker, only to stop.
Let's talk about the front LED display light. It is very bright when it is turned on at night (it can illuminate a whole corner in the dark). However, I must turn it off, as shown in the following two figures (open and closed states, respectively):
Obviously, night light pollution (especially when used at home), which was already very obvious, was well controlled after the LED display was turned off.
Talk about the firmware. Geeks naturally like to brush their own firmware, because this machine is a special identity, can only retain the use of the original firmware. In addition to logging in to the router through a browser, Netgear's products can also be accessed through the "NETGEAR Wizard" client software or the APP. This is very convenient! And the interface is easy to understand, the following are the browser and the client's main interface (do not configure the details of the screenshot, this is not difficult):
Download the USB storage speed on the test. First insert the mobile silver disk into the USB3.0 interface, the computer is connected to the WIFI of 5G, and the content of the removable hard disk is downloaded through the client ReadySHARE.
From the computer through the R8000 to the mobile hard disk stable speed in the 26M or so, from the mobile hard disk download to the computer local stable speed of about 44M. Although there is a big gap between NAS and NAS, I'm really satisfied with the router! And it hasn't been tested with Gigabit cable (because there is no cable at hand) and the speed is definitely faster. If the computer is connected to 2.4G WIFI, the download speed is about 10M, so the 5G WIFI advantage is huge!
From 2.4G and 5G (with two) tri-band usage: The difference between 2.4G signal and home 360P1 is not great, but the 5G signal is amazing! 360P1 is also known as a large-sized router (I did not have large units), known as the signal strength, did not buy the millet router is to consider the signal strength problem. About WIFI of 5G frequency, we experienced in friend's house before, and every wall (to enter the restroom) dropped from the full grid (4 cells) of the same router 2.4G to 3 cells, and 5G dropped from full cell to 1 cell! However, this R8000 did a number of partition tests. The result is that the 5G signal strength is better than 2.4G! Not only people think incredible, but even more people imagine that the existence of dark matter technology may exist!
Let me talk about the use of the company. Because the landlord's company (small and medium-sized manufacturing industry, one main building in the main building, one side is a three-tiered office area) has recently added a bar code system for production, dozens of system terminals need to be connected to the server system wirelessly to build a contracting company. Ordinary routers are not stable, with the needs of the wireless network in the office area, there are a total of three routers (a certain type of D-Link card), but often due to network problems lead to system abnormalities, often inexplicably dropped (may signal Mutual interference, or the stability of the machine itself, often requires restarting the router to resolve. The R8000 is a villa-grade high-power router, and its configuration is high enough and the system is powerful enough. The main useful QoS is to replace R8000 with the original three routers (2.4G is mainly used for bar code system equipment). , All the way 5G is used by office computers, another 5G is used as employee mobile wifi), and after three days of use, the system runs smoothly. It seems that more professional use of the field requires a more professional router!
The R8000 has been a mature and stable high-end router since it was listed two years ago, and its price has also dropped significantly from the original 1999 yuan. Although it is a professional router, the interface and logic are clear and easy to understand. If the home is a villa, or a building in the building, using the R8000 is a very good choice; it can also use its powerful and reliable performance to enter some commercial areas that are not too complicated.
Disadvantages:
1, LED display light is relatively bright, the evening home use, and did not turn off the led display before it is indeed very light pollution, and the light color is more dazzling white.
2, the plastic shell process does not have a flagship. Compared with 2K yuan (at the time of release) and 1,000 yuan (at my purchase price), it does not match this price with the appearance of materials and workmanship. The entire machine has buzzing and the material is just ordinary engineering plastics. .
3, the price is still significantly higher than the average home machine. Compared to a hundred-dollar router used by ordinary households, although the price is reduced from 2K to 1K, this price is not a price that most buyers (though not tyrants and geeks) can easily buy.
4, 2.4G signal strength is not obvious.
5, the firmware is relatively slow (including login to the router, modify the configuration, etc.). The players who will play are definitely tossing other firmware or third-party firmware, even foreign firmware (domestic requirements for signal radiation are relatively high, it is said that brushing foreign firmware can significantly increase signal strength).
advantage:
1, bright appearance, powerful features. This is a tough guy with a sci-fi appearance, and maybe almost all powerful routers like to have no compromise in appearance.
2, good speed through USB storage. I've seen other reviews, many say that USB's mobile storage speed is relatively slow, but my experience is just the opposite. The stable speed of uplink 26M and downlink 44M has been quite amazing (compared with other routers, not NAS) . Note that you must use 5G WIFI.
3, the signal strength is really not covered! Amazing at its 5G signal, too many 5G signals for entry-level low-end ac routers are too bad, but R8000 makes me subvert this misunderstanding, and no longer have to worry about the next layer of 5G is not available.
4, stability and QoS. Professional-grade routers may not be so noticeable in signal strength improvement, and they have a qualitative leap in anti-jamming and stability. Ps: Not all nominals are really valid by QoS.
After the full text, thank you all.
