Ah Choi found out that there is one of his own types of business: Generations take advantage of the opportunity - because of the small DIY expert, his friends circle has always been looking for a lot of installed equipment configuration. of.
To install a friend to the machine without additional money, the maximum is the difference between coupons and members PLUS special offer of Jingdong orders, generally speaking, please eat a meal on it. However, in the past three or four years, fifteen or sixteen units have not been seen yet.
Fortunately, Aunt Zhang's original sunbath can receive rewards of more than one hundred gold coins, and it can be regarded as better than nothing.
This does not, a few days ago, the original direct leadership during the North drift - Department Manager WeChat call me, asked me to help install a 3DS Max + hearth / WOW / ass Blizzard family bucket of desktop machines, directly to say that their own hands , I want to help install the machine installed system to send SF to pay the past.
Too, when I was drifting in the north for three and a half years, I now leave Beijing and return home to buy a house to work from scratch. Of course, I’m going to give him a list of AFC's high-cost machines:
This is for others to install the machine, accessories to be completed on the invoice, so in addition to CPU and radiator, all my accessories have gone Jingdong. All methods of saving money are used - that is, various coupons - Aunt Zhang Jingdong coupon 199-19 - with 100 points; every morning at 10:00, 8:00, Jingdong mobile client has a variety of all kinds of coupons Receiving, must be fast, usually finished 20 minutes; January 10~20 New Year Festival Jingdong Mobile App has red packets rain, I also accidentally grab several times; New Year's Day home page also has 500-30 coupons to receive, daily refresh , but I'm not sure if it's 0 o'clock or 10 o'clock in the morning.
Martial arts in the world, but not fast break ... ... a quick cover hundred ugly ... æŽ ä¸€ ç®— ç®— æŽ, Intel ç®— ,, Intel this month, the new i7-7700K, with the default frequency of 4.4G rolling E3, 2500 about the performance of the CPU king no suspense . However, the Jingdong boxed price is not friendly, and the 3DS Max CPU is the first to render stability, and is not going to do any overclocking.
Intel Core quad-core I7-7700k boxed CPU processor 2799 yuan to seek peace of mind to buy Jingdong own, feel that they are not Africans face is not black to buy Sham Shui Po Sake can be directly saved, you can directly save 520 yuan! Jingdong direct link Actually, I bought Shenshuibao, 2269.
7700K official version of the scattered piece _ Taobao search selection price in the 2218 ~ 2219 yuan (2017 during the Spring Festival, the Festival should be up) sales of hundreds of broken on the right s.taobao.com direct link Order screenshots, pictures and facts, I bought it a week ago, but also expensive dozens of pieces
Board selection criteria, Ah Choi selection - 1, VRM power supply enough, Skylake and Kabylake is not overclocked with 4 + 2 can be, VRM with heat sink, CPU 8pin power supply. No overclocking Bx50 series motherboard can be, there is no need to pay for other, the price requirements in the 599 below 399 although the board has also bought, but the materials and workmanship have shrunk to a certain level, watching are more miserable. In order to meet the requirements of trusting my friends with the machine to fight as much as five years, I still prefer to use a motherboard with better materials.

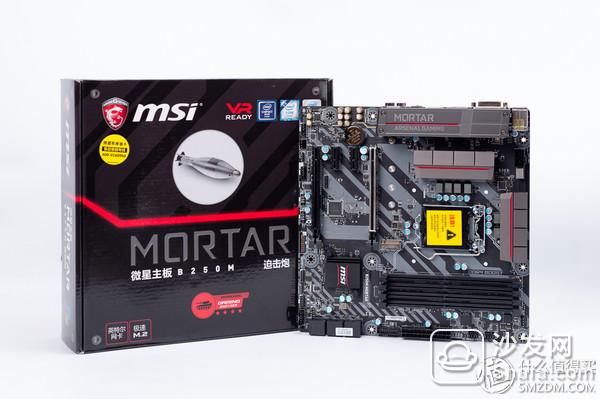

MSI B250M MORTAR motherboard (Intel B250/LGA 1151) 669 yuan Jingdong Diamond member 619, during the Spring Festival it is easy to pick up 500-30 coupons 589, send a cool cold supreme Blizzard T20 radiator, this radiator 7700K can not withstand , Sell discount it! Jingdong direct link Compliance with this requirement has always been the GIGABYTE B85M-D3H series. As a result, MSI's mortars at the beginning of the B150 have also become a meeting board.
Order screenshot:
One half of my memory was installed on my own, the Chichi - a pirate ship, because of the light, the wind, and the high frequency. We have installed Kingston and Shiyan. Kingston is widely recognized for its brand reputation - including the sale of second-hand traffickers who told me that you are not good enough for the memory of the Shiyan brand. If Kingston, I can give me 30 more each. Shiyan memory is because in addition to the non-reliable white film Guangwei, Jingdong own the cheapest brand memory, but there is still a certain probability of encountering Ray's situation, the following receipt of the goods out of the box I will point out the slot Tucao.
Team Elite Series DDR4 2400 8GB Desktop Memory 339 yuan Elite series is Shiyan's entry-level vest strip series, launched for mid-range players. This Shiyan Elite Series DDR4 2400 8GB desktop memory is a relatively low frequency DDR4 memory, 1.2V voltage, CL=16, parameters are not very beautiful, but fortunately the price is cheap and looks good. For users who want to enter the 100 series motherboard, entry-level DDR4 vest is still worth paying attention, Jingdong direct link to Wikipedia The Toshiba Q200 EX selected by the SSD, the Z410s in the SanDisk Plus for the T410, the Lite-On T9 256G sold out of stock, the final few of the big-name films are Jingdong's self-licensed MLC SSD, and the other is the Kingston V300. (Chiba and Activision are all white films). I don't mean to whom, although Toshiba Q200 EX has added DRAM cache, but it is more than twice the residue of the TLC particles in the seat! Including Toshiba's own Q300, Intel 600p and 540s, that is no hot death and 5 year warranty.
Toshiba (TOSHIBA) Q200 series 240GB SATA3 solid-state drive 699 yuan Everyone in the Tucao Q pro and Q300 when the gap is very large, in fact, the Q prolegacy inheritor Q200 was forgotten in the corner. The Q200 EX series uses the Toshiba TC358790XBG master. This master is transformed from the Marvell 88SS918x master control. It supports 8-channel transmission with 4 CE units per channel. The flash memory uses Toshiba's own 19nm MLC. Jingdong direct link view. Wikipedia I used 500-40 coupons, so the order price reached 659.
JONSBO C3 silver MINI-MATX chassis (support MATX motherboard / aluminum chassis / ATX power supply / 175MM high radiator / 275MM long video card) 269 yuan aluminum M-ATX, supports full-size power supply, dual graphics, full Size M-ATX motherboard. Xiang Sibo is a good choice for students who are deterred from the aluminum chassis of Lian Li and Yin Xin. This Qiao Sibo C3 chassis was launched in September last year. Compared with the existing M-ATX chassis, it has undergone some changes. It has abandoned the optical drive and compromised the length of the discrete graphics card. The compatibility of the large graphics card is in the overall chassis. The volume has been reflected in the size of the Jingdong direct link to Wikipedia Chassis Qiao Sibo C3, Ah Cai favorite valet installed with the M-ATX chassis, because - small, support 175mm height tower radiator, support ATX power supply, cheap, in the face of cheap, God horse Tucao aluminum thin, ah, There is no point in doing poor work. Anyway, it was me who took the changer. The principals received all the machines I had already installed. Therefore, the sharpness of the chassis was not sharp, and the hand scraping did not scratch my hands. It was that I silently accepted the bird and saved the other party money.
Graphics card selection is more flexible, Spring Festival, New Year period, GTX 1060 3G (referred to as 1063) and RX 480 4G (referred to as 484) have special 13xx, so see which special offer to buy buy.
Note that the RX484 has a full-load power of more than 180 watts, and most non-public wattages are more than 200 watts full load, so a power supply of about 100 watts larger than the GTX1063 is required. 7700K+B250 is not overclocked, with GTX 1063 can use 400 to 450 watts of full-watt power supply (350 watts of gold power supply can also be used, but must be a single 12V foot does not shrink), and with RX484 must use 500~550 The power of the tile is considered safe electricity.
XFX rated 550W XTR550 power supply (80PLUS gold / full module / 5-year warranty / support back line) 579 yuan XFX XTR series 550W power supply can be regarded as the optimized version of the Rhine Yun scheme, adding a low load fan Stopping, the 12cm fan replaced the 13.5cm fan, also passed the 80plus gold medal, the nominal effective conversion rate of 90%, and the high conversion rate power supply of high-tech products. Double-panel, high-standard materials and LLC+DC-DC topology full-module design, 12V single-circuit design, 12V maximum 45A540W output Jingdong Direct link Encyclopedia Jingdong quoted 6800, and the result was good to Alipay directly to Alipay. Finally, after all the coupons were used, it was 6400.
To give him back, the result said that there was still a few headsets, and he added a Kingston stinger to the game. He played the game and listened to the voice and added YY voice. There were 299-60 coupons for the peripherals when the order was placed.
Kingston HyperX Cloud Stinger Stylus Professional Gaming Headphones 359 Compared to the HyperX Cloud Series, the Stinger is designed to be simple, lightweight materials handling only 275 grams, very light. The metal girder is durable and adjustable. The hanging arm also supports 90 degree rotation for easy storage or hanging around the neck. Special HyperX memory foam closed earmuffs and better packageability. Volume adjustment at the bottom of the earphone. Noise microphone, rotate up to switch mute. In addition, this headset also adopted the Te Jingdong direct link to view encyclopedia When the time of the order was more than half a day later than Aunt Zhang’s announcement, the result was a shameless price increase of 15 yuan.
Find
Kingston Kingston HyperX Cloud Stinger headset headset 279 yuan (329 yuan, coupons) large size drive unit, large-caliber considerate package. Jingdong currently sells for 329 yuan. With 299-50 coupons, the price of 279 yuan can be reached. The price is good in the near future. Value Friends broke the original: 299-50 good price Compared HyperXCloud series, Stinger simple design, lightweight material handling only 275 grams, very light. The metal beam is durable and adjustable, the hanging arm also supports 90 degree rotation, convenient for storage or hung on the neck, speciality dream_0| Value 1 Comments 5 Collection 2 Direct Links View Details Well, when we posted today, we found that the memory has dropped by 20, which means it's worthless! Worth mentioning, to install an entire machine, it is impossible to buy the best prices in all aspects of life unsatisfactory, nine out of ten ah ~ ~
The display mouse and keyboard set let him send his own single, so I do not need to change hands.
Arrival of the family -
The motherboard B250 chipset is best suited for overclocking users.
DDR4 2400 memory 8Gx2 = 16G, can only be considered enough for rendering and 3DS Max, but the motherboard has 4 memory slots, you can also expand. Now that the price of memory chips is really fierce, the memory of the 339/8G is good. Of course, I installed the machine will choose to use the second hand to save some money, about 250 can also buy 8G on salted fish, but to a friend installed not afraid to use second-hand parts, a problem can not tell.
But - cheaper is a price - the guest officer and look ... ... What is wrong with this memory, you found it?
That's right! The gap is not the same. Turning over to see, the memory PCB is not the same, there are words below the gold dot in the upper right corner, and there is no word. A strip of PCB near the notch has 2 resistive elements and the other one has only one.
Labels are affixed to both sides. Although they are not sleeves, the difference in the same batch of shipments is so great. Is it really good? However, the time of loading, logistics, and final delivery of the goods before the deadline was January 23 before I could send them to the client. Otherwise, I could not send them to the client before New Year's Eve. Obsessive-compulsive disorder can only endure!
Install CPU, memory, heat sink.
As an old driver, first turn on the power supply test machine outside the chassis.
Full module ports, CPU + PCIe power actually up to 4, but the 550-watt power supply is indeed not suitable for dual-card SLI.
Toshiba Q200 EX, the last MLC SSD -
Pick up the bare machine power test machine.
The Qiao Sibo C3 is small, and one XFX XTR-550 ATX power supply seems to occupy a quarter of the space.
The back line was actually designed, but Ah Cai did not plan to go back. Because its backplane does not reserve any trace holes at all.
Motherboard memory CPU loaded together, remember to first install the IO bezel, remember to pick up the reed on the bezel of the NIC, or it will break into the RJ45 interface, block the plug into the crystal, the first time not installed but also removed once The old driver should not make mistakes.
The installation position of the SSD C3 chassis is designed at the bottom and will block the intake air intake volume. Ah Cai thinks about it and uses a screw to hit the unidentified horizontal crossbar behind the front panel of Qiao Sibo. Put the Toshiba Q200EX behind the front panel of the chassis.
The actual location of the installation is shown in the figure:
Installed the power board CPU memory SSD, and finally only the graphics card and CPU heatsink.
The CPU heatsink is installed in place, and the direction of the CPU fan is the same as that of the air duct of the chassis daisy fan.
XFX XRX RX 480 4G graphics card is also installed in place, nylon cable tie chassis only to 3, it is certainly not enough, it is recommended to buy in Sham Shui Po or hardware store -
Nylon cable tie I bought is 4mmx300mm this specification, it is easier to use.
4*300mm Self-locking Nylon Cable Tie 30cm Bundle_Taobao Search Taobao Search is the smartest product search engine. Through the operation of big data, it can accurately understand the goods and users and provide accurate personalized search experience. Direct links to s.taobao.com
Successfully lit, no problem, install Win10 MSDN version 1607 everything goes well.
M-ATX is suitable as a home machine without special expansion requirements, small size, high performance, and good heat dissipation. The requirements for power supplies, heat sinks, graphics cards and other accessories and motherboard prices are not as extreme as ITX. Basically, it is possible to use exactly the same accessories as the ATX chassis.
Because the air-cooled radiator with tower height of 160cm is supported, the i7-7700K cooling with 4.4G is not too stressful.
This chassis can also expand one 3.5-inch hard drive, mounted on the side of the power supply. This I do not deserve, let him choose freely.
Appreciate the chrysanthemum, optimistic about the Qiao Sibo C3 is a key point is that although the price of 259, or standard chassis exhaust fan, if there is no exhaust fan out of the chassis of 300 watts of heat, then it will become a big burning pot.
After installing the machine, test it for a day and confirm that there is no problem.
i7-7700K CPU verification
Temperature AIDA64 AVX2 single FPU roast chicken below 80 degrees.
The daily use of this temperature is not possible, and the maximum temperature that can be detected in everyday use is 70 degrees.
The Master Lu who loves to see
Toshiba Q200 EX 240G SSD performance. SLC Cache write performance is kept at a high level, 4K performance reading is slightly lower, but it is enough for everyday use.
DDR4 2400 C16 dual channel memory performance, compared with the performance of the dual-channel DDR3 2400 C11, the era is declining.

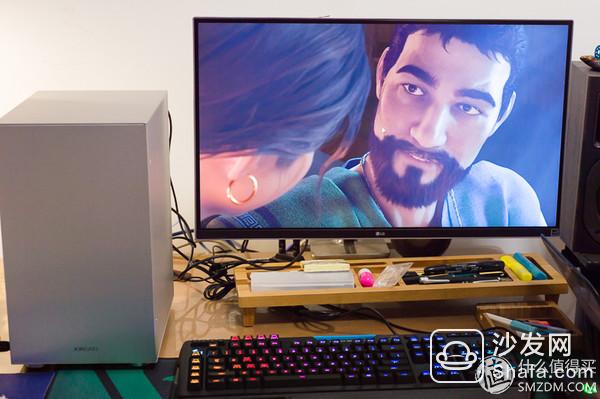

A little ran away with Civilization 6, this game is best suited to killing time for good friends during the Spring Festival.
Check the Kingston stinger headset before shipment, and found that Qiao Sibo this cheap chassis or shrink the place or live up to expectations, the headset jack is very loose, plug in to feel the USB board with obvious sloshing.
In addition, the front chassis connector of the PC chassis is generally two three-stage plugs, one is a headset and the other is a microphone, and the four-stage single-hole plug of the headset needs to be transferred in two points, such as the Kingston headphones generally have a conversion line.
After the test chassis front audio interface is connected to the headset, there is no problem, you can strengthen the chassis filler to send SF Express. Between the radiator and the graphics card, fill it with a foam filler, without squeezing or leaving a gap.
This trick is also the forum to do the whole business to teach, if not so full, generally the whole courier may be due to violent transport on the way to cause the radiator and the graphics card to fall, bad motherboard and video card.
Yesterday, the young friend finally received the machine and expressed his satisfaction. Finally, the last successful installation of the Monkey Year was successfully completed!
Let's take advantage of Zhang Damao's treasure here to give everyone a New Year's greeting. Everyone has a rich year-end prize and a good fortune in the new year. I wish everyone will continue to be happy in the new year!
